High Speed Fully Automatic Electronic Pharmaceutical Pill Counting Line

Product Description

Automatic Counting and Bottling Line
The automatic counting and bottling line is a complete solid granule product packaging line that can count hard capsules, soft capsules, tablets, augers, snack foods, hardware, etc., and has a wide range of applications.

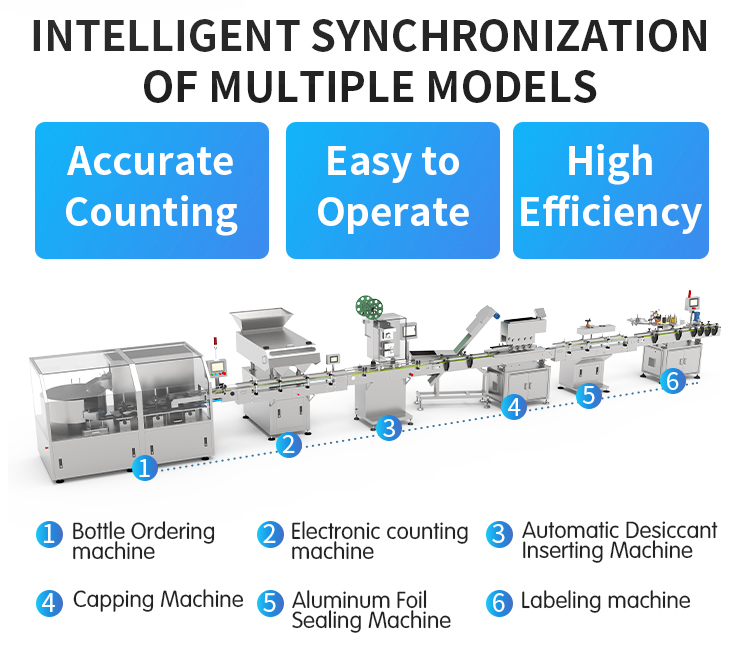

The whole line consists of 1.bottle ordering machine, 2.electronic counting, 3.automatic desiccant inserting machine, 4.capping machine, 5.aluminum foil sealing machine, 6.Labeling Machine. (According to the needs of users, adding or deleting machines)

All machines can be operated synchronously after connection and ensure stability. Each machine of this production line can adjust quickly and use independently. And the whole production line can assemble and separate easily and quickly.
01.Bottle Ordering machine
01.Bottle Ordering Machine
The machine adopts special mechanism (compressed air is not needed) to arrange disorderly bottles and keep their mouths upwards when they are delivered downstream. If the next working procedure lacks bottle, the unscramble machine will continue working to ensure working continuity. If bottles are jammed in the next working procedure, the machine will stop automatically.

The machine has the function of photoelectric inspection to ensure reliable and smooth running. If bottle size is changed, you only need adjust width of bottle conveying lane and relevant template. It is easy to operate, so generally operators can master. The product conforms to requirements of GMP.
Size of bottles
20-300 ml
Output
40-100 bottles/min
Power supply
220V 60Hz
Power
0.15KW
Overall dimension
950*950*1110mm

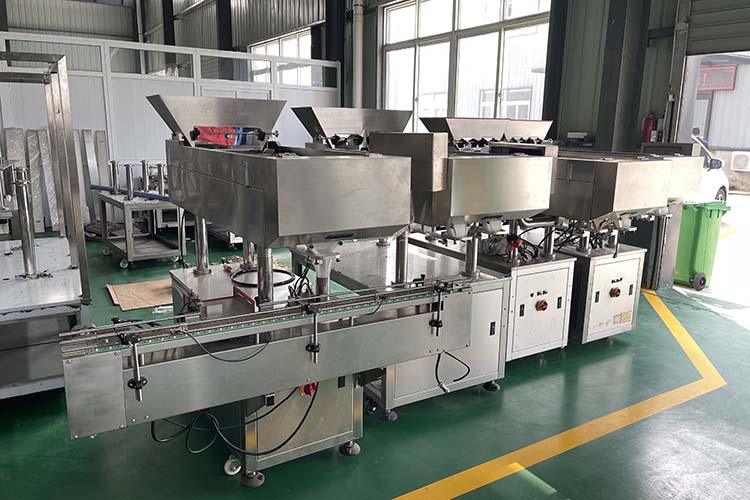

02. Automatic Electronic counting machine
02. Automatic Electronic counting machine
The machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.

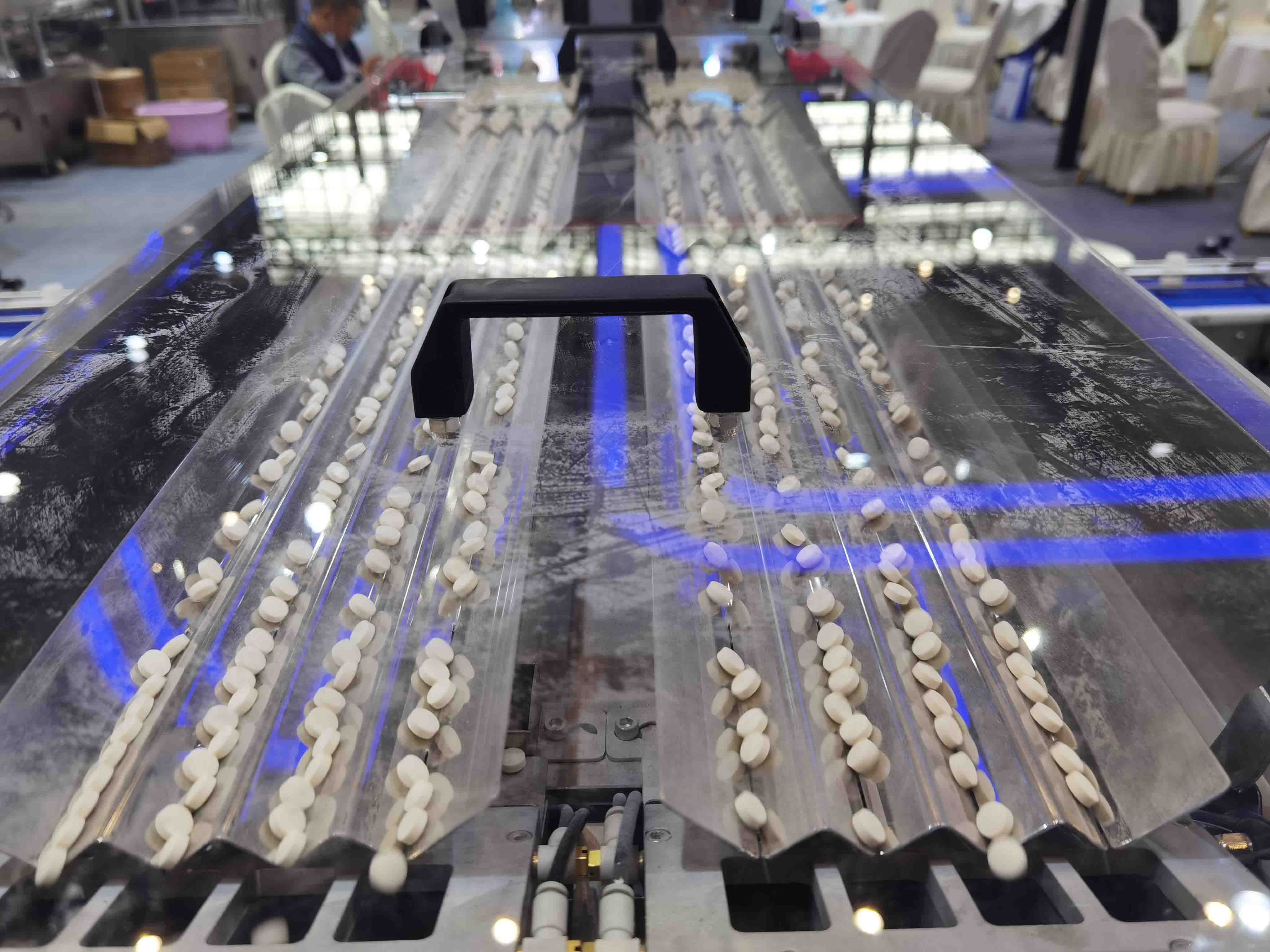

Counting Channel

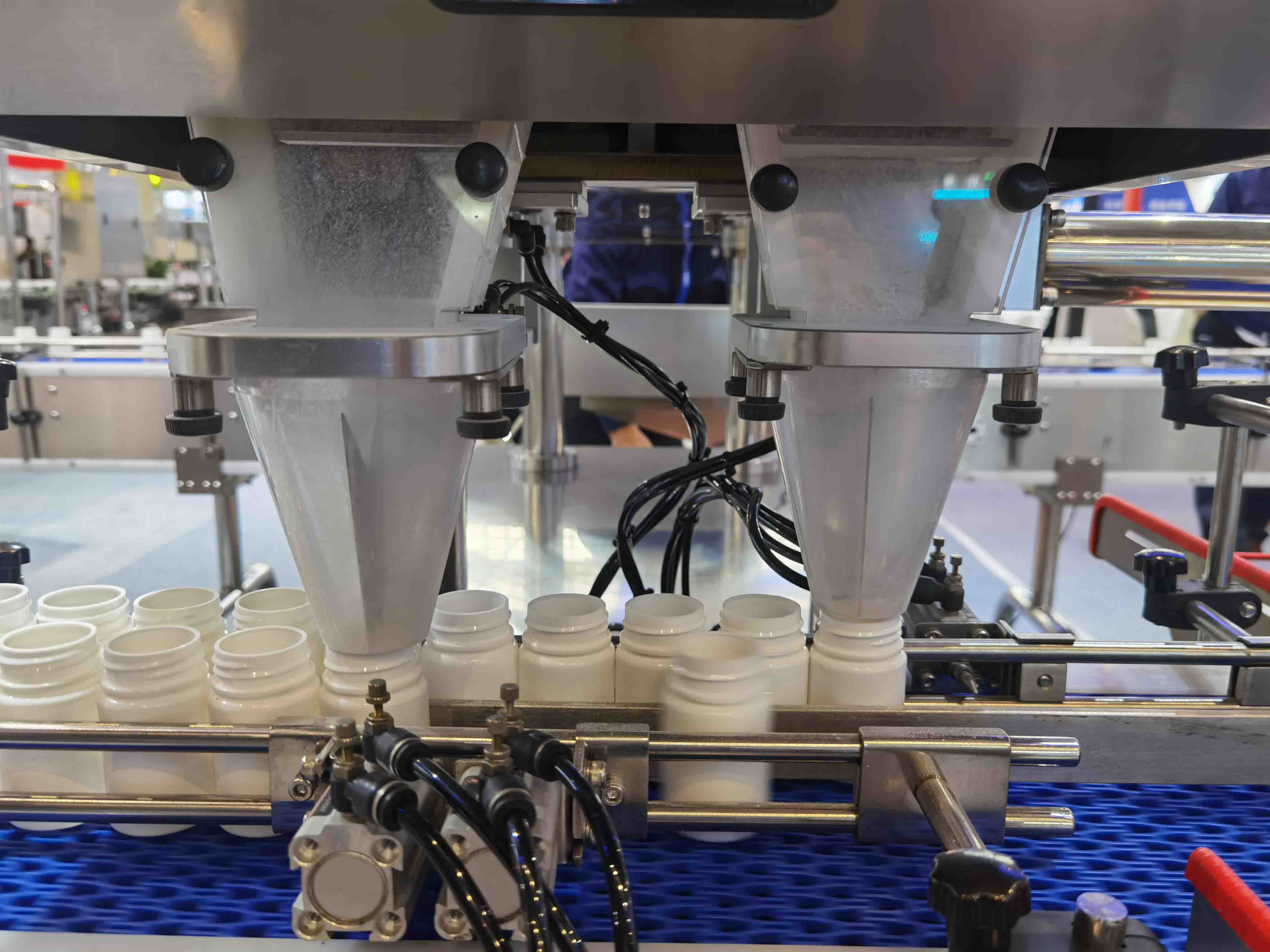

Counting Nozzle

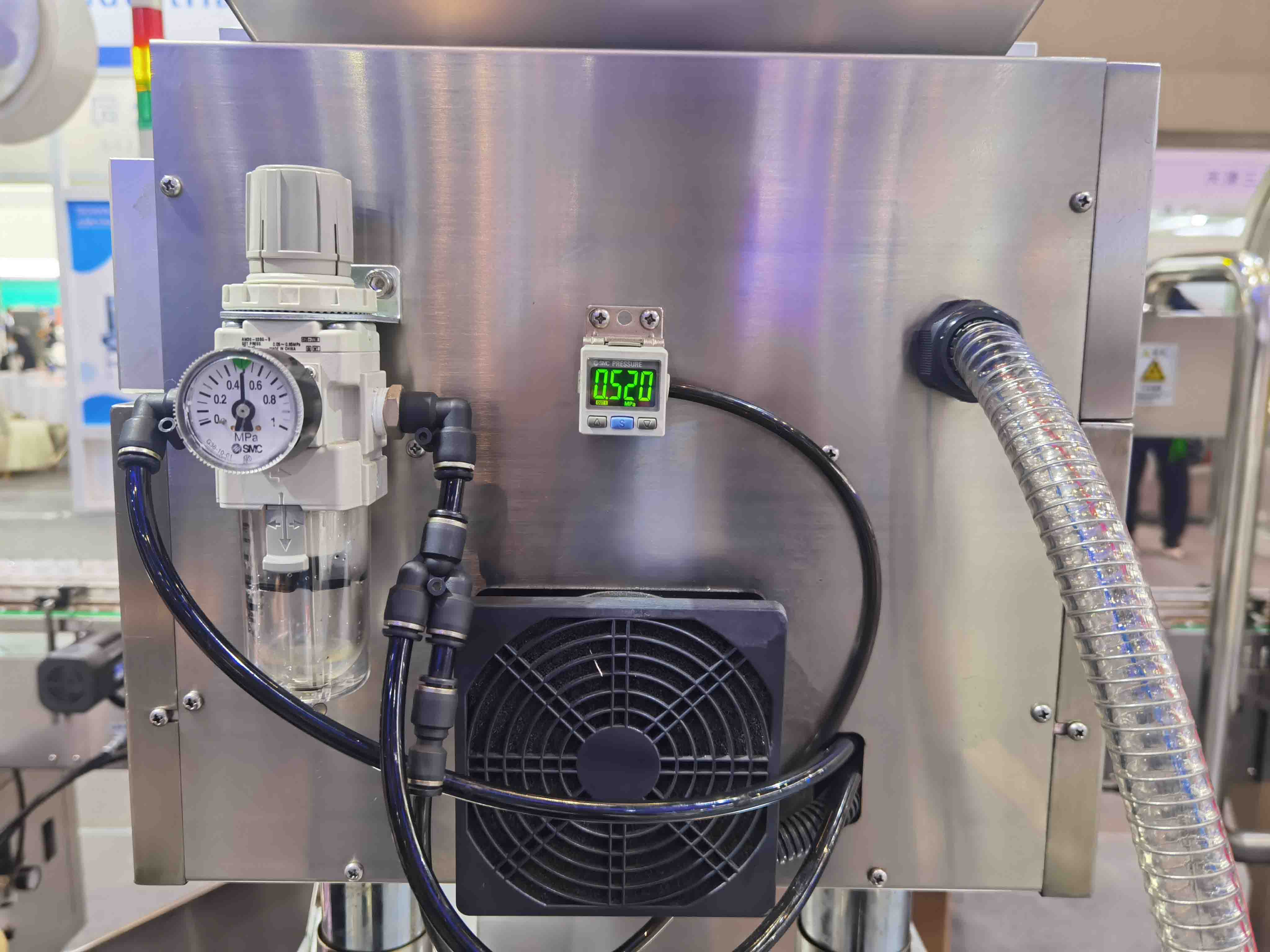

Dust Collector Connection

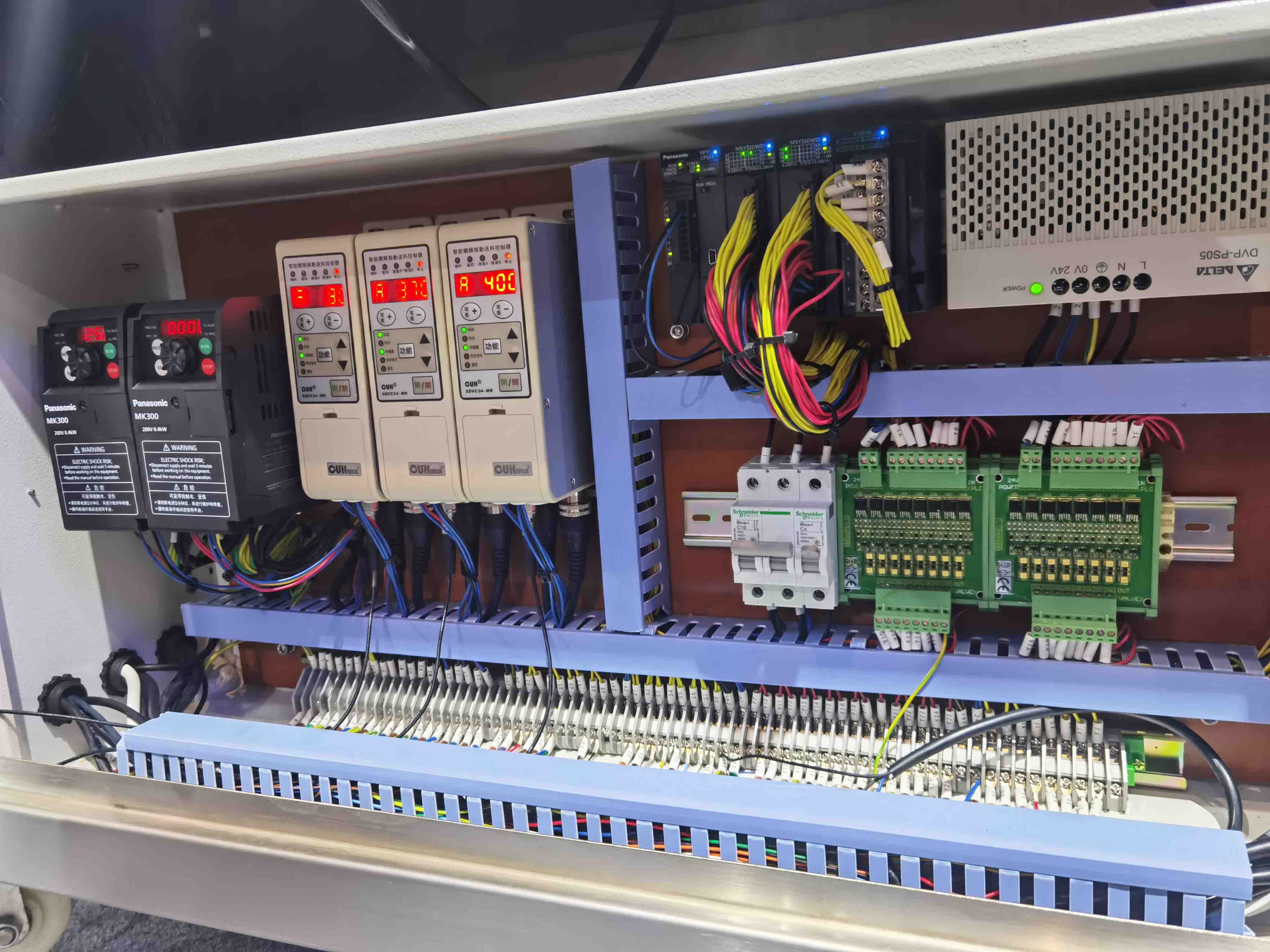

Electronic Parts

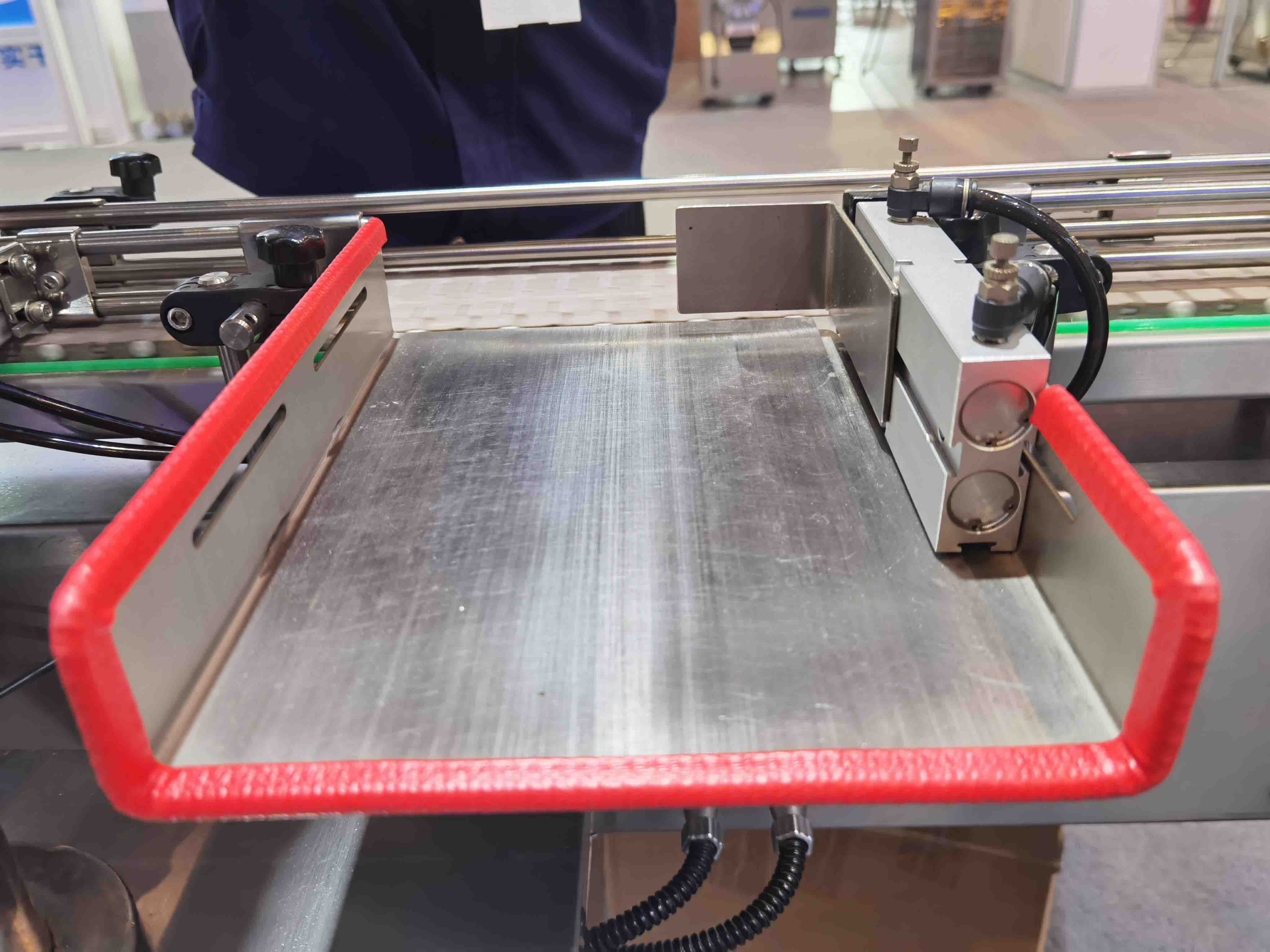

Rejection Collection Table
Model Name
LTEC-24
Hopper Volume
60L
Capacity
90 bottles(30 pcs/bottle)/min
Filling Quantity
15-9999pcs/bottle (adjustable)
Bottle Size
Diameter: 30-75mm
Height:40-250mm
Counting Size
Thickness: 3-10mm
Diameter: 3-15mm
Length: 3-30mm
Compressed air
0.5Mpa
Conveyor Belt Length
2400mm
Machine Weight
500kg
Machine Size L × W × H (mm)
2000*1600*1680mm

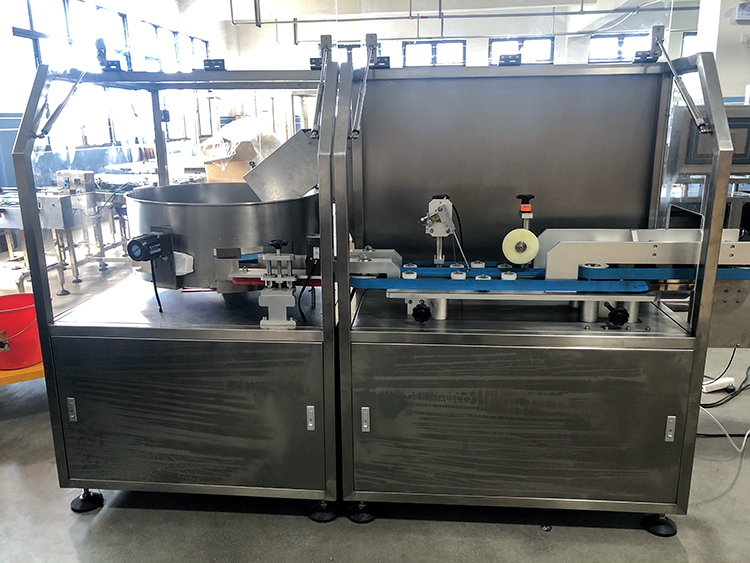

03.Automatic Desiccant Inserting Machine

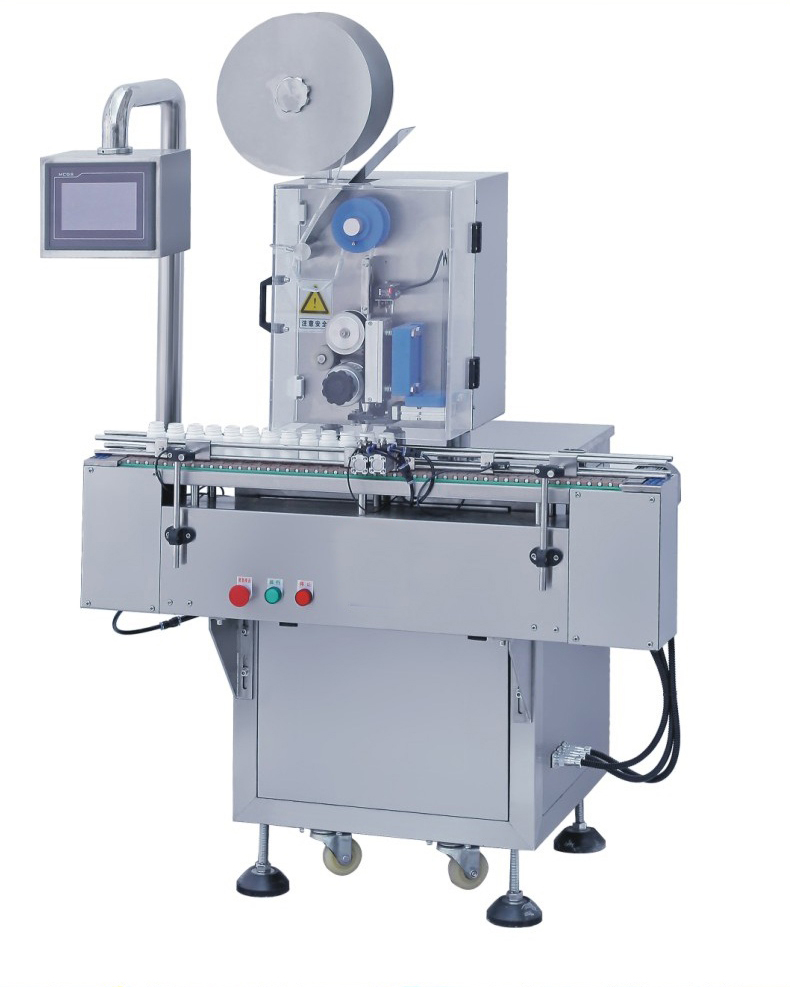

03.Automatic Desiccant Inserting Machine
The machine applies automatic controlling system to take the place of the previous manual operation. The machine can automatically cut the belted desiccant and insert the desiccant bag into the container accurately and speedily.
It is available for bottles and pots made of different materials. It features double-lane photoelectric positioning, intelligent feeding length controlling and automatic adjustment of accumulated length error.
The electronic controlling system ensures the machine starts when bottles reach working position and stops when bottles are insufficient automatically. The product conforms to the requirements of GMP
completely.
Bottle Size
20-300ml
Output
40-100bottles/min
Power Supply
220v 60Hz
Power
0.85kw
Overall Dimension
1250*630*1750mm
04.LTCG-160 Capping Machine

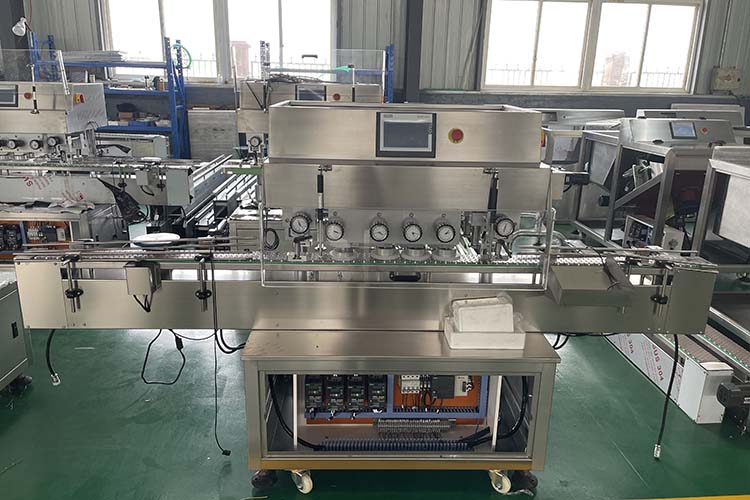

04.LTCG-160 Capping Machine
The bottle caps neatened by the cap neatening device ,the bottle caps with mouth up are carried to the caps collecting guideway, the bottles come from other equipment of the assembly line enter the caps collecting area. The bottles move ahead with clamping of the two sides clamping device then the caps match the bottles automatically.
The cap pressing device press the caps to the pre-tight situation before rotating the caps. Under the function of three pairs of high speed rotating wearable rubber wheels, the caps match with the bottles tightly.
Applicable bottle shape
20~500ml of round、oblate、square、flat square bottle
Capacity
50~120 bottles per minute
Cap size
φ25-φ50mm
Machine Size
1850×600×1560mm
Weight
600kg
Power supply
AC220V 50Hz1.8kw
Air pressure
0.6Mpa

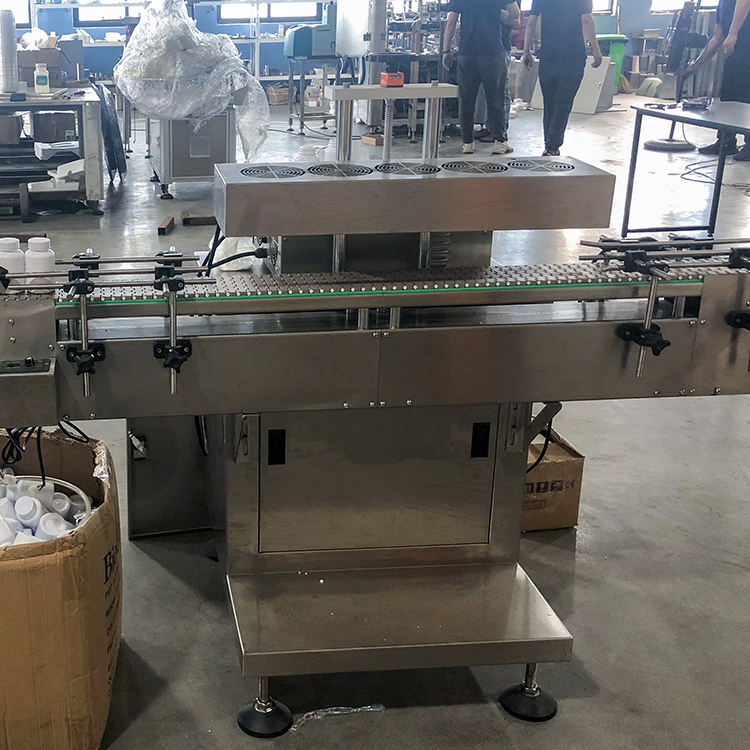

05.LTLF-1 Automatic Induction Aluminum Foil Sealing Machine
05.LTLF-1 Automatic Induction Aluminum Foil Sealing Machine
Intermediate frequency power supply of the machine makes effective output power great and output current adjustable. It also auto tracks change of current load and makes adjustment in time. The machine is available for various bottles. The special sealing induction plate is completely shielded without electromagnetic pollution and its safety is superior to high-frequency power supply. Coding system of the machine adopts built-in water circulation to save water consumption and reduce water pollution; it also has pressurizing system which features good cooling conditions, short sticking time, firm sealing and high stability.
And it also has functions of continuous counting and automatic rejection of caps without aluminum foil. The product confirms to the requirements of GMP.
Bottle Size
20-300ml
Output
50-120bottles/min
Diameter of caps
Smaller than 60mm
Height of bottle
220mm
Power Supply
220V 60Hz
Power
2Kw
Overall Dimensions
1300*780*1750mm
06.MT-200 Labeling machine
06.MT-200 Labeling machine
MT-200 Labeling machine in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.
Company Profile
Our Company

- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc.
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = High automation + High precision + More energy saving + Satisfactory warranty and after-sales service + Trusted brand

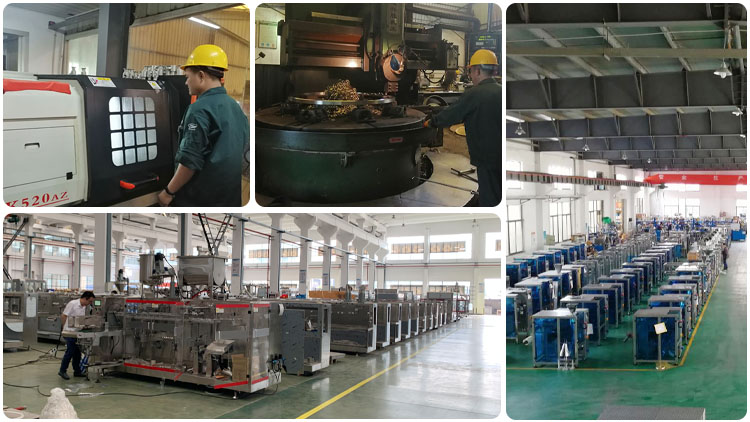

Our Machinery Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Sales Team
Our Customers

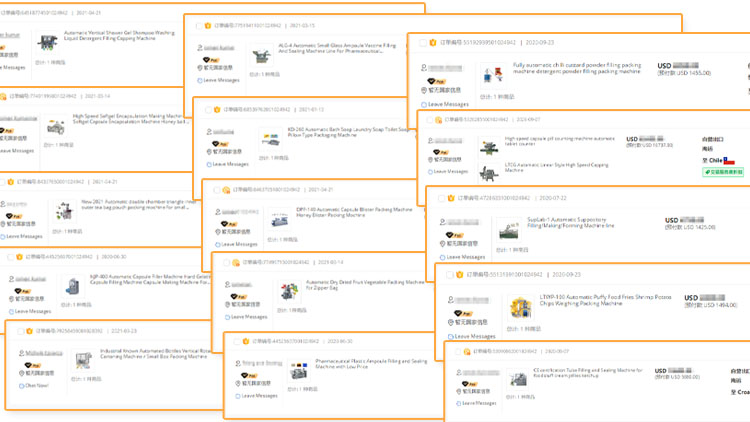

Orders from Alibaba
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
1. Q: How many different model of Counter you have?    A: Totally we have HY-Series Semi Auto Counter, CountPro-Series Auto Counter, LTEC-Series Automatic Counter.  2. Q: What is the difference between different Counter?    A: HY-Series are mainly used for TableTop counting, operator needs to manually put bottle under counting nozzle. The advantage of the machine are no change parts, suitable for all kinds object and economic cost.  CountPro-Series machine is only used for count capsules, the advantage is economic cost with Fully Automatic Function.  LTEC-Series is suitable for all kinds of objects without change parts, Fully Automatic, 100% accuracy, High Speed and multifunction.  3. Q: How many stage of vibration you have for LTEC-Series Electronic counter?       A: We adopts three stages vibration. The channels are all extra widened for ensure 100% counting accuracy.  4. Q: How many years of warranty you have for the counter?          A: 5years for LTEC-Series and CountPro-Series. include all mechanical parts and electronic parts. Two years warranty for HY Series.  5. Q: Do you have local service all over the world?          A: We have local service in below country: Colombia, America, Canada, Peru, Pakistan, Bangladesh, Vietnam, Philippines, Indonesia, Ecuador, Dominican Republic, etc.
