Home > Products > Inner Packaging Machine > SupLab-1 Automatic Hepatic portal Suppository Packaging Forming Filling Equipment

SupLab-1 Automatic Hepatic portal Suppository Packaging Forming Filling Equipment

Product Description

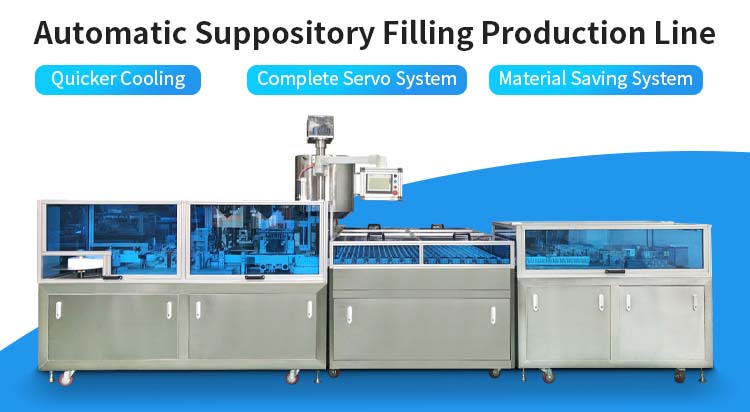

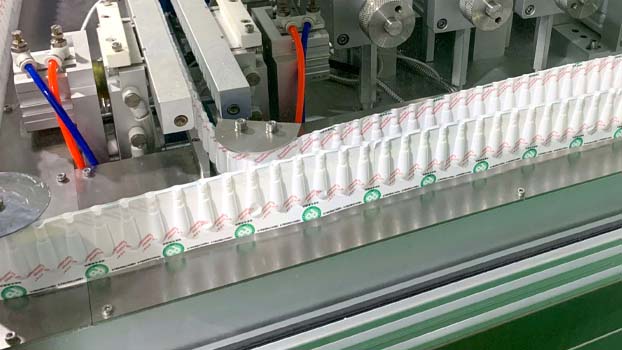

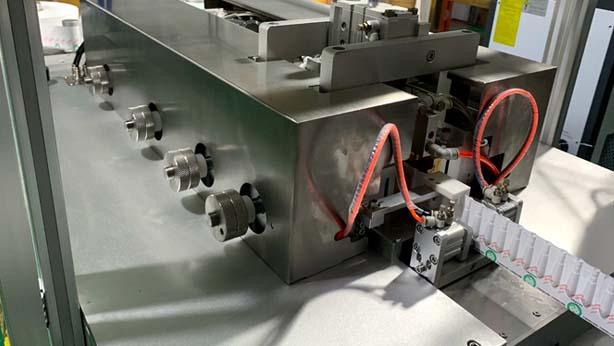

Simple Description The automatic suppository filling production line has a stable and efficient manufacturing process, filling, freezing, sealing and other production processes to complete the whole process, and the production capacity is 10,000 grain/hour. Production process: From automatic suppository shell forming, to the filling station of liquid medicine, Recirculating cooling set (liquid to solid), Continuous sealing with batch number, Transfer finished cutting (the number of cutting grains can be set arbitrarily on the touch screen, 1-10 grains can be cut at will) Main Technical Data
Model
SupLab-1
SupLab-3
SupLab-7
SupLab-10
Output
1000-1500 pcs/h
4500-5000 pcs/h
10000 pcs/h
15000 pcs/h
Single dosage
0.5—5g
0.5—5g
0.5—5g
0.5—5g
Dosage allowed
<±2%
<±2%
<±2%
<±2%
Packaging Film
PVC\PE
PVC\PE
PVC\PE
PVC\PE
Stirring tank capacity
20L
30L
70L
70L
Air pressure
≥0.6Mpa
≥0.7Mpa
≥0.7Mpa
≥0.7Mpa
Air consumption
1.2m³
1.5m³
1.5m³
1.5m³
Water consumption
50kg(recycling)
50kg(recycling)
50kg (recycling)
50kg (recycling)
Working voltage
3 phase 380V
3 phase 380V
3 phase 380V
3 phase 380V
Total power
4KW
5KW
7.5KW
9.5KW
Machine Weight
500KG
1000KG
2000KG
2500KG
Overall dimensions
2300*1200*1800mm
3587*1388*1828mm
5302*2120*1809mm
5965*2120*2,150mm

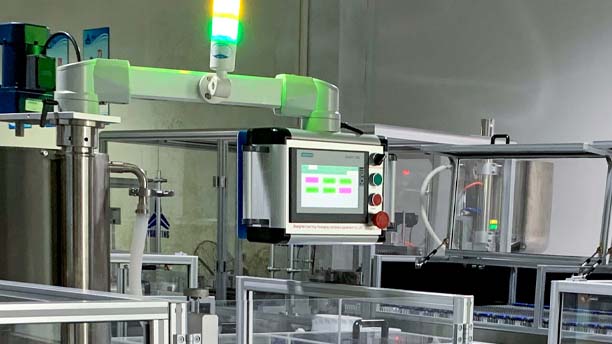

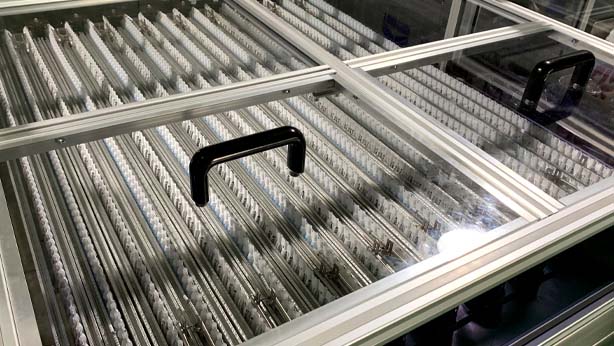

Features 01. The insertion type linear perfusion mechanism -- The insertion type linear perfusion mechanism can be used to locate accurate, not dropping, and not hanging wall; The single-grain measurement is 0.5-5g and the filling error is plus or minus 2%. 02. Production capacity -- The production capacity is 4500-5000 grain/hour. -- The temperature sensor and microcomputer control system are used to realize high precision thermostatic control. 03. Siemens PLC control system -- The equipment adopts PLC programmable control and man-machine interface operation, easy operation, convenient adjustment, accurate temperature control and smooth operation. 04. Servo high precision filling system -- Filling, freezing, sealing and other production processes are fully automatic. -- Filling piston by servo motor with stroke rule, easy to observe, stable action, no jitter and splash phenomenon, load online adjustable, high precision and easy to adjust! 05. exclusive circulation of water cooling system -- latest circulating water cooling technology, which can solve the phenomenon of slag falling off and easy fracture when the medicine is torn apart. -- exclusive circulation of water cooling system advantages of thick tail edge, tear off residue. -- The temperature is adjustable. 06. Finished product The sealing seal should be well sealed, with neat appearance and good value of not less than 99.%. Company Profile Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Contact us if you need more details on Automatic Hepatic Portal Suppository Packaging. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Automatic Suppository Packaging Equipment、Suppository Packaging Equipment. If these products fail to match your need, please contact us and we would like to provide relevant information.
