Hot selling fruit juice powder extraction and concentration machine

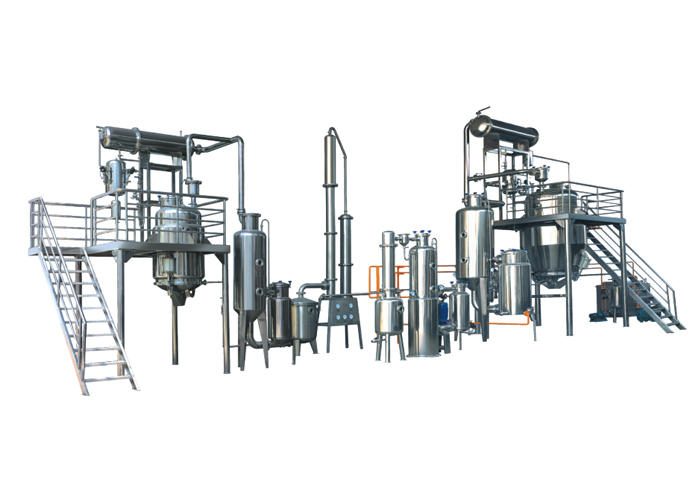

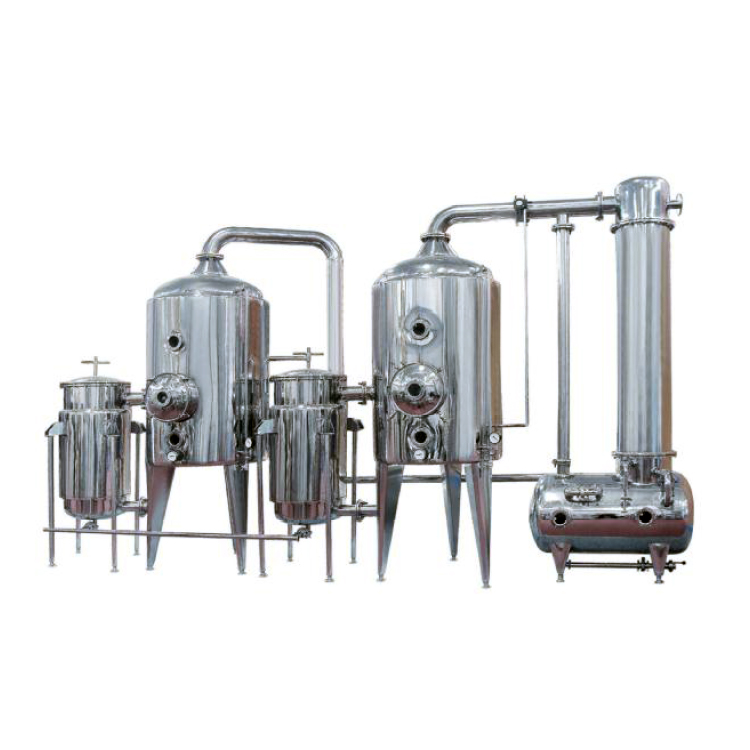

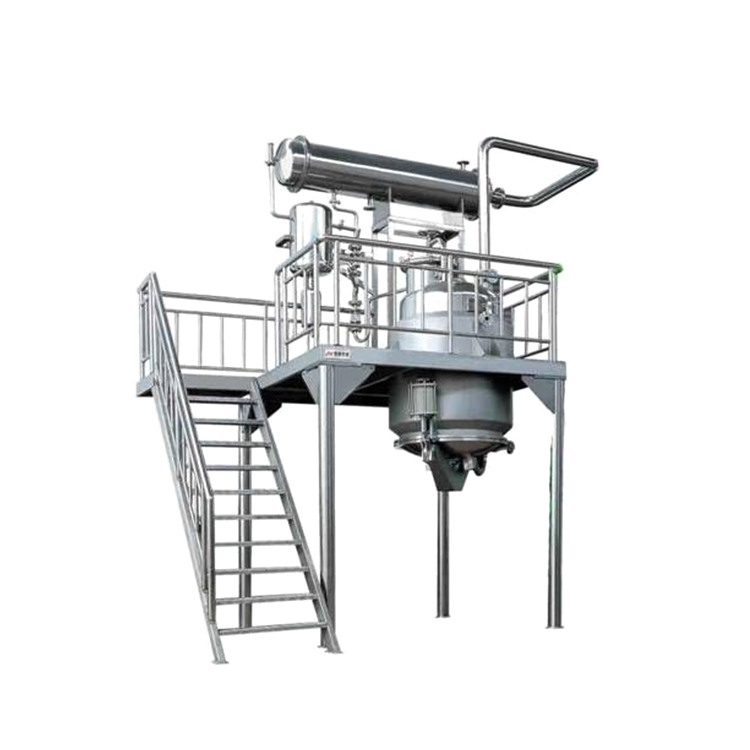

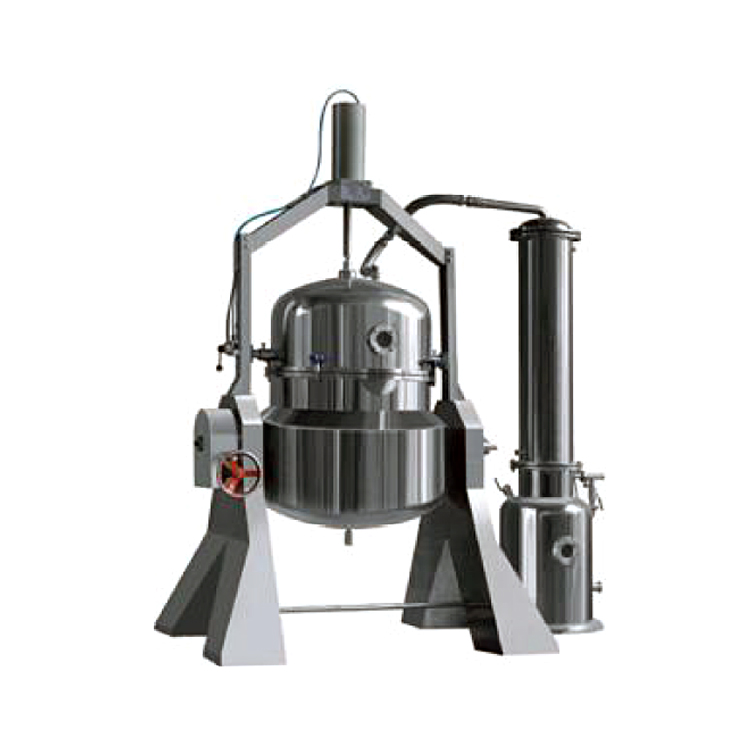

Extraction and Concentration Production LineApplication:This Extraction Equipment Line suits for extraction of herbal material, such as rose oil, zedoary turmeric oil, star anise oil, litseacubeba oil, patchouli oil, peppermint oil, lavender oil, herbal extarction, and beverage extraction. It is easy for operating and with high oil extraction rate. It meets for GMP standard.Products:Main Technical Data:

Model

LTN-0.1/25

LTN-0.2/50

LTN-0.3/75

LTN-0.5/125

LTN-1/250

LTN-2/500

LTN-3/750

LTN-4/1000

LTN-5/1250

The volume of extracting (m³)

0.1

0.2

0.3

0.5

1

2

3

4

5

Raw Material Input Capacity (kg)

10-15

20-30

30-45

50-70

100-150

200-300

300-450

400-600

500-700

Capacity of Concentrating Evaporator

25 kg/hour

50 kg/hour

75 kg/hour

125 kg/hour

250kg/hour

500kg/hour

750kg/hour

1000 kg/hour

1250 kg/hour

Water Circulation Capacity

10-15T

10-15T

10-15T

10-15T

15-20T

15-20T

15-25T

15-25T

20-30T

The time of extraction (h)

6-8

6-8

6-8

6-8

8

8

8

8

8

Concentrate density (%)

1.2-1.35

The work temperature of extracting and concentrating (°C)

Water: 50-90°C Alcohol: 40-80°C temperature can be customized from -40°C to -70°C

Power of Vacuum Pump

3kw

4KW

4.5KW

5KW

6.5kw

8KW

9kw

10kw

11kw

Model	LTN6/1500
The volume of extracting (m³)	6
Raw Material Input Capacity (kg)	600-800
Capacity of Concentrating Evaporator	1500 kg/hour
Water Circulation Capacity	20-30T
The time of extraction (h)	8
Concentrate density (%)	1.2-1.35
The work temperature of extracting and concentrating (°C)	Water: 50-90°C Alcohol: 40-80°C temperature can be customized from -40°C to -70°C
Power of Vacuum Pump	12kw

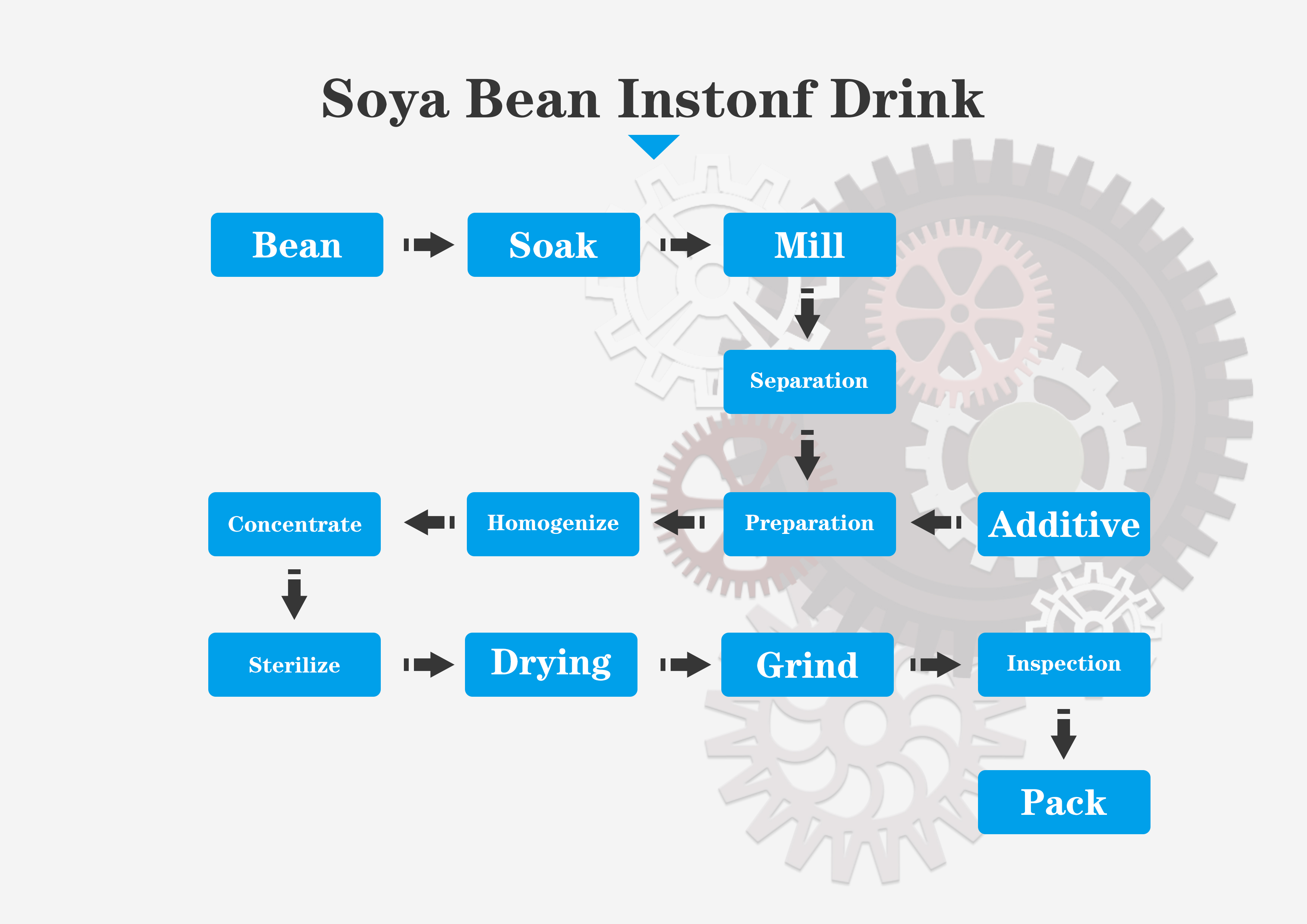

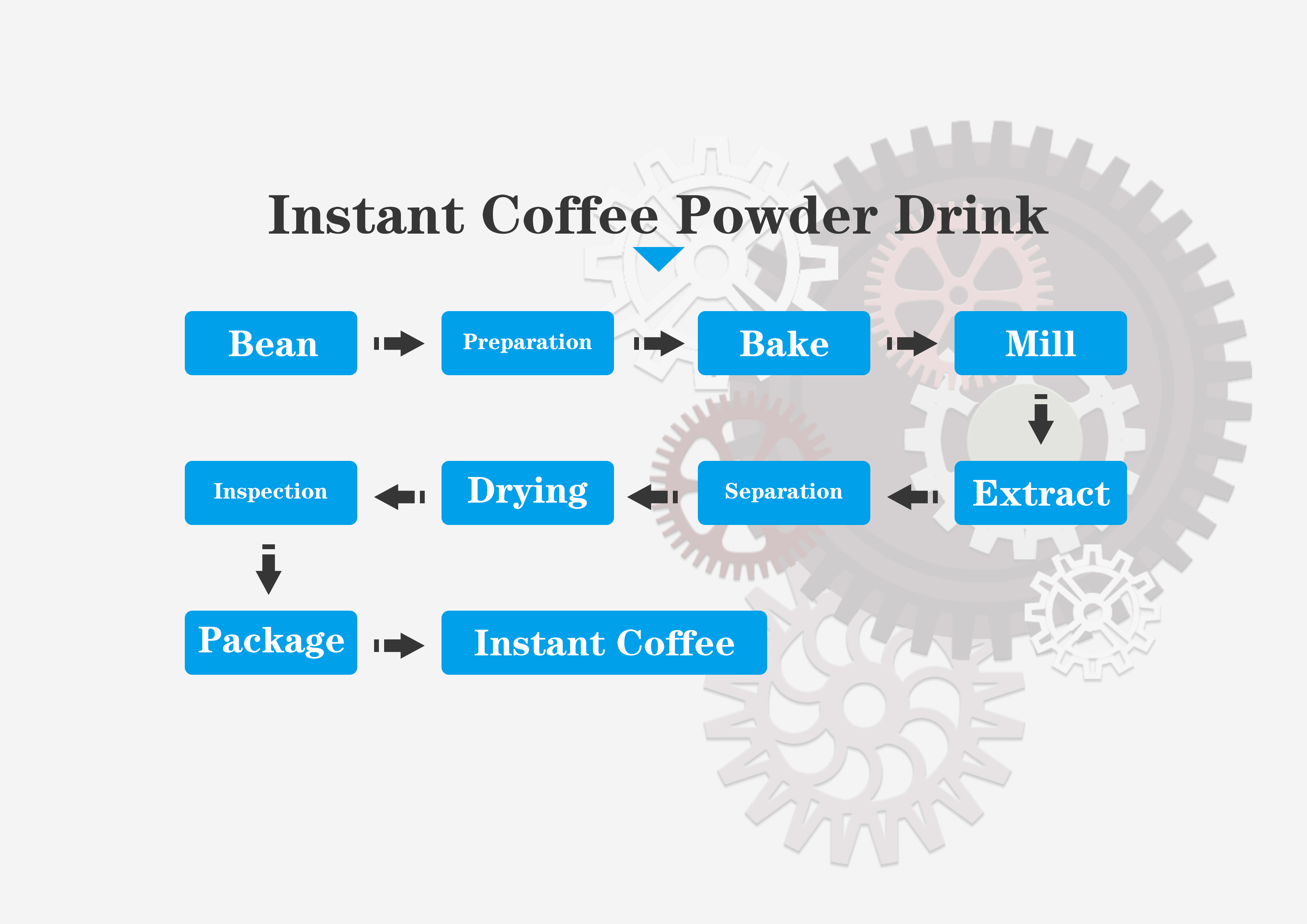

Techincal Peocess:Product:Q: What price terms you offer? A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request. Q: What payment terms you take? A: TT, LC, other terms are also workable. Q: Will you help with installation and stuff training? A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day. Q: How can I visit your factory? A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you! Any other doubts about our machine, please feel easy to contact with us.

Contact us if you need more details on Fruit Extraction Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Fruit Powder Extraction Machine、Extraction Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
